Estimating Containers

GMT is container native when it comes to orchestrating the application and capturing performance metrics. But typically the energy of the Metric Providers are system level.

If you want to drill down the energy on a per-container level GMT offers to create an estmation based on the CPU utilization of the system.

Setting up container estimations #

Prerequisites

• You must have a PSU Metric Provider activated
• You must have a System level CPU Utilization Metric Provider activated
• You must have a Container level CPU Utilization Metric Provider activated

GMT will then

• Takes the baseline energy value of the machine
• Takes the runtime energy value of the machine
• Creates a difference
• Splits the resulting difference proportionally to the individual container’s CPU% in relation the other containers CPU% share

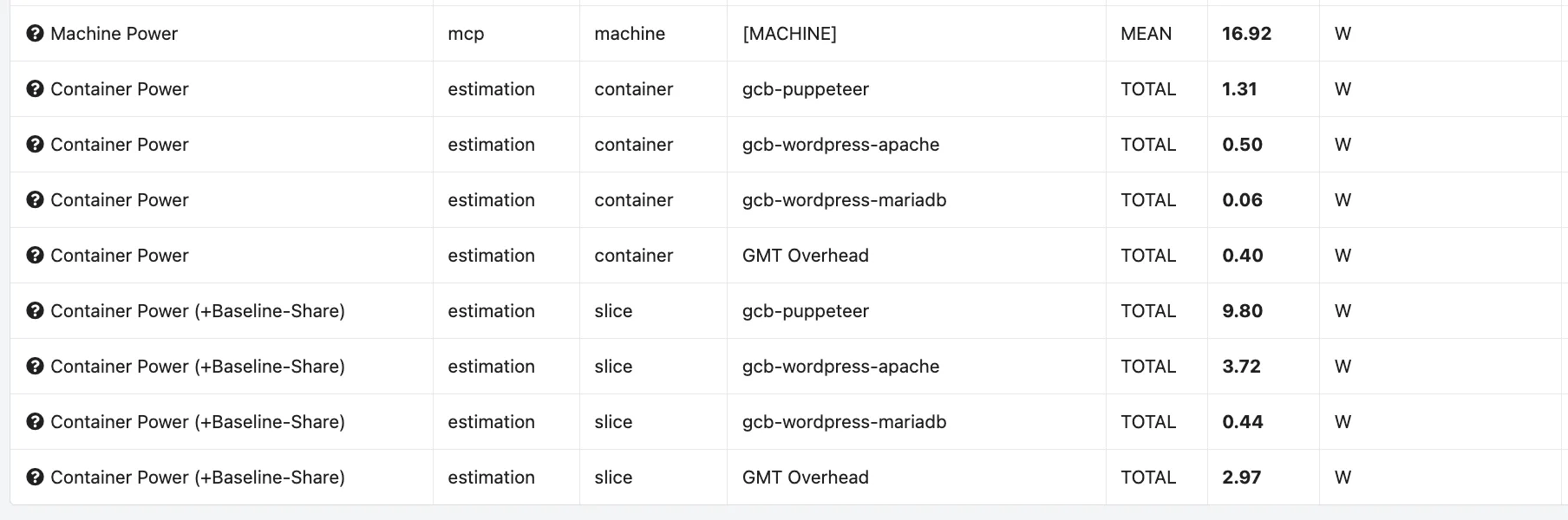

Example:

The difference between Container Power and Container Power (+Baseline Share) is that the Container Power is the overhead / additional power additional to the power that the system was already drawing during the baseline when no containers where launched.

ontainer Power (+Baseline Share) includes the attributional share of the baseline load also. It is split also according to the container’s CPU% in relation the machine’s CPU% share. This means that a container that has 20% CPU-Utilization in comparison to the other containers will also get 20% of the baseline power draw attributed.

Requirements for reproducibility #

This method only works if the baseline is long enough (the cluster ensures this with a 60-second timeframe) and the CPU is set to a fixed frequency without Hyperthreading and TurboBoost. Otherwise, you’ll get incorrect allocations, as, for example, “30% CPU Utilization” no longer has a clear meaning due to the limited cycle count.

However, there is a good approximation.

Limitations #

The value is still shaky, because although utilization is more stable with a controlled cluster setup, it’s not as good as, for example, CPU instructions (which would require PMU sampling), and non-CPU energy is only considered indirectly.

So, if you execute strange CPU instructions, such as AVX instructions or CPU steal time, or if you have a hard drive that executes asynchronous workloads like TRIM independently of CPU instructions, this will distort the energy evaluation.

Addon: Detailed CPU energy drill-down #

We currently have a beta feature to be launched in Summer 2025 that utilizes AMD RAPL per-core energy registers and core-pinning to report individial container CPU energy metrics.

The GMT will utilize a taskset to pin the container to a distinct core. Since no other processes are running on your benchmarking systems in Green Metrics Tool Cluster Hosted Service → the values are very reliable.

Private beta opens Summer 2025. If you are interested shoot us an email to info@green-coding.io
